Complete and Easy Bidirectional

Typechecking for Higher-Rank

Polymorphism

Joshua Dunfield

Neelakantan R. Krishnaswami

Monday, December 9, 13

Overview

• Higher-Rank Polymorphism

• Type Checking for Higher-Rank Polymorphism

• Bidirectional Type Checking

• Complete and Easy Bidirectional Type Checking

for Higher-Rank Polymorphism

Monday, December 9, 13

ML Polymorphism

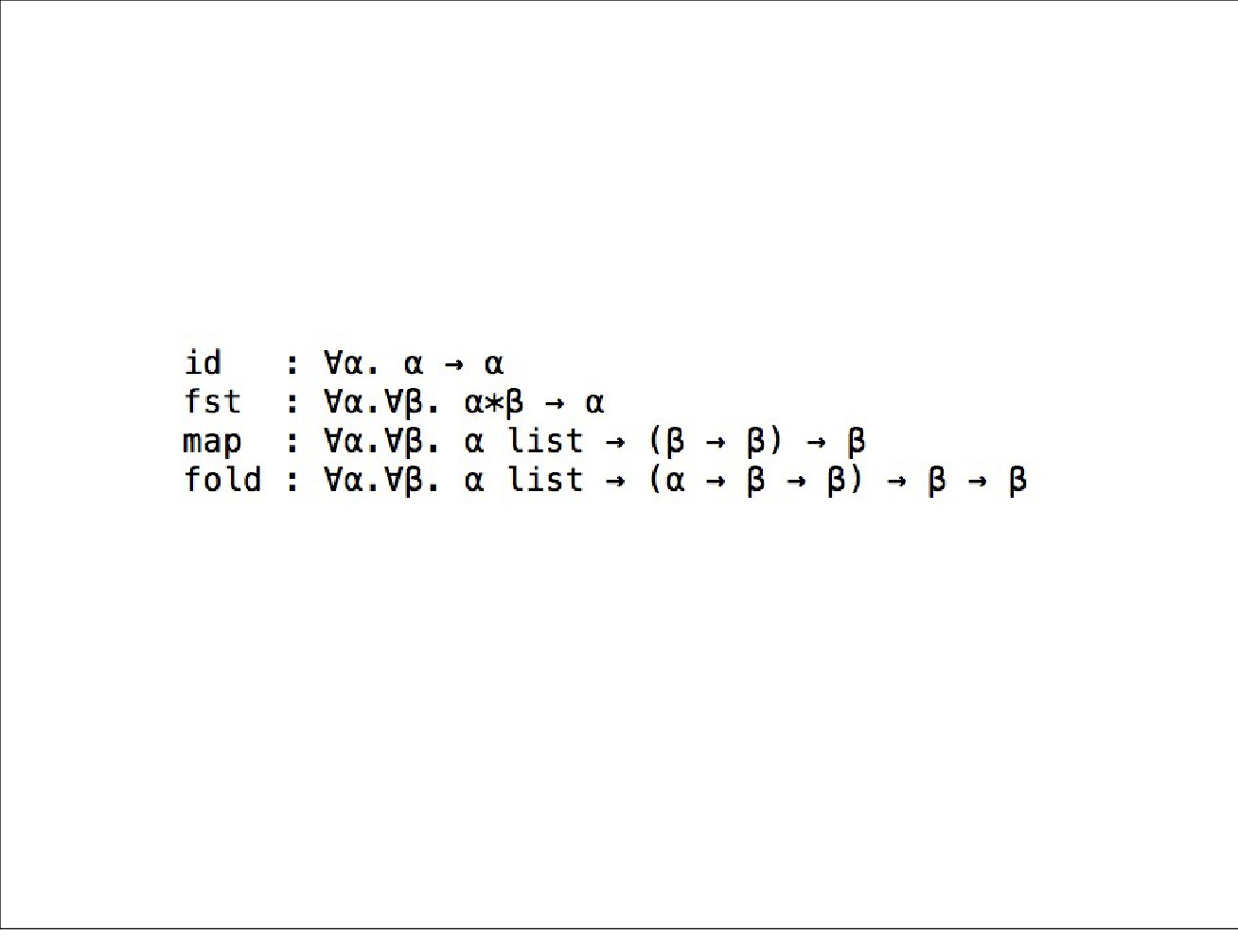

• Consider types of some popular polymorphic functions

in ML:

• Observe that quantifiers for type variables only occur at

the prenex position.

• An ML function cannot be polymorphic in its arguments.

• Can it be polymorphic in its return value?

• A price that we pay for decidable type inference.

Monday, December 9, 13

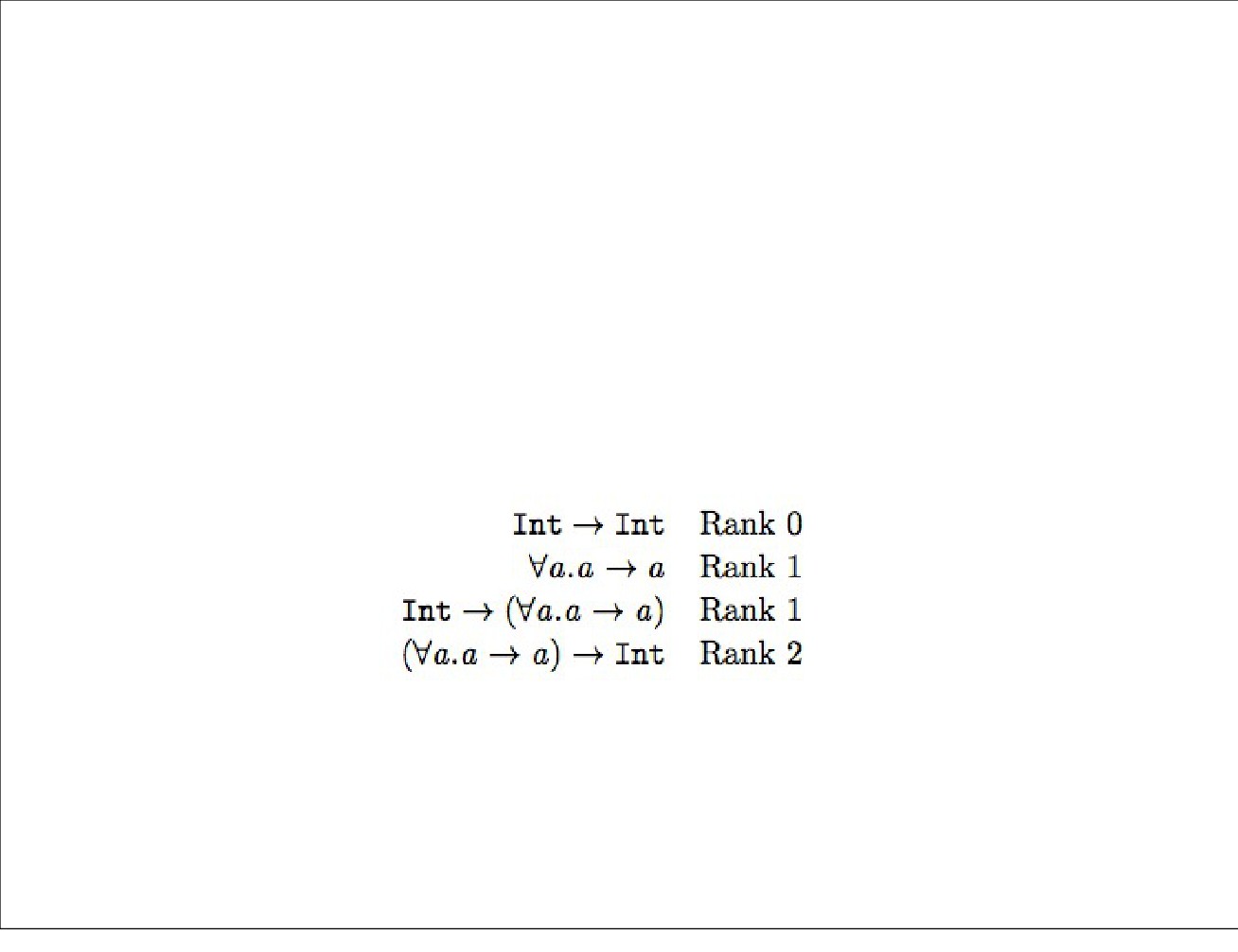

Rank of a Polymorphic Type

• Polymorphism that we have in ML is rank-1 predicative

polymorphism

• A type is said to be of rank n if no path from its root to

a ∀ quantifier passes to the left of n or more arrows,

when the type is drawn as a tree

• Polymorphism is impredicative if quantified type variables

can be instantiated with polymorphic types. Predicative, if

they can only be instantiated with monotypes.

Monday, December 9, 13

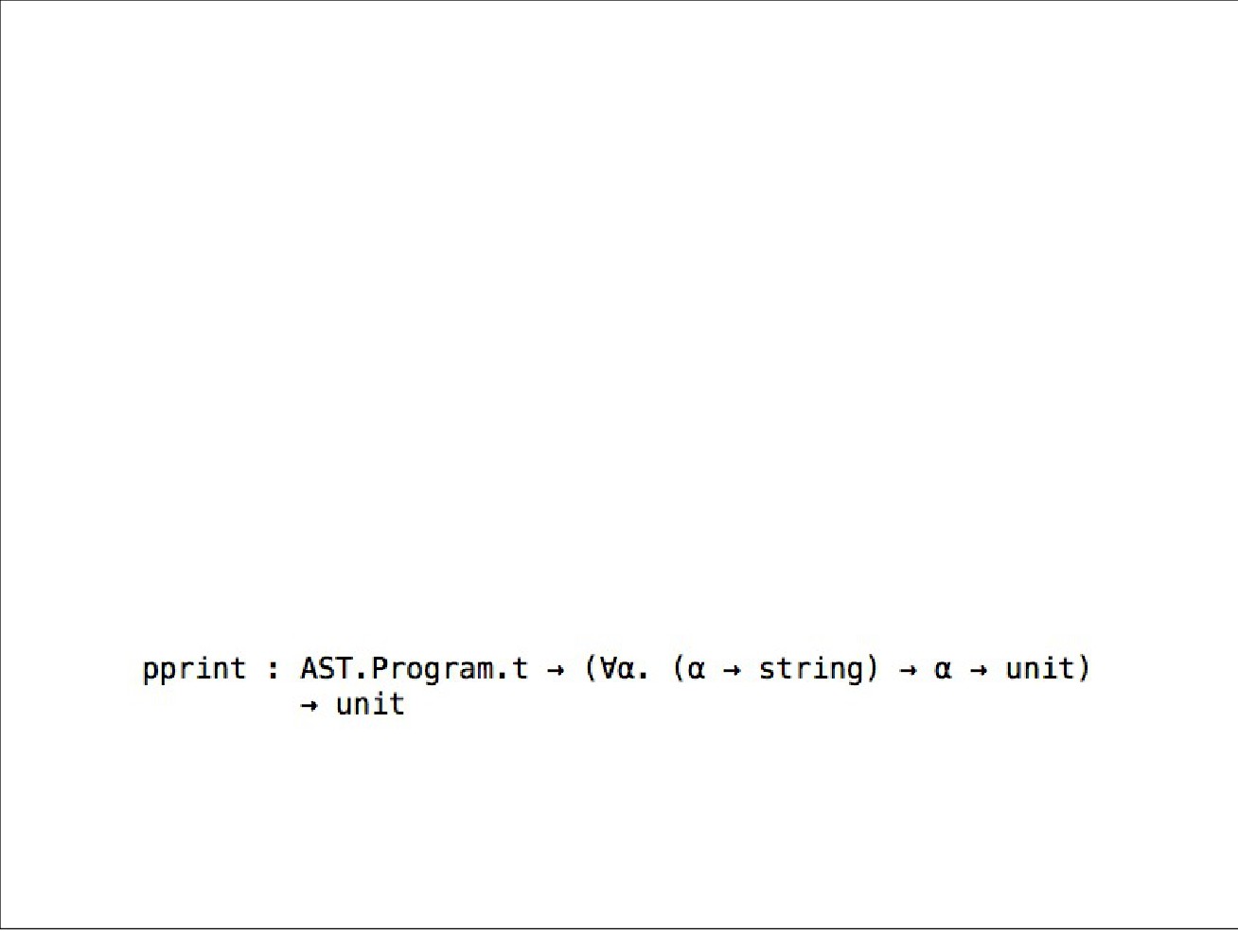

Why Higher-Rank and Impredicativity?

• Higher-rank and impredicative polymorphism can be

useful.

• polymorphic recursion possible.

• More programs typeable.

• System FC (SPJ’07), the core language of GHC is a

higher-rank impredicative system.

Monday, December 9, 13

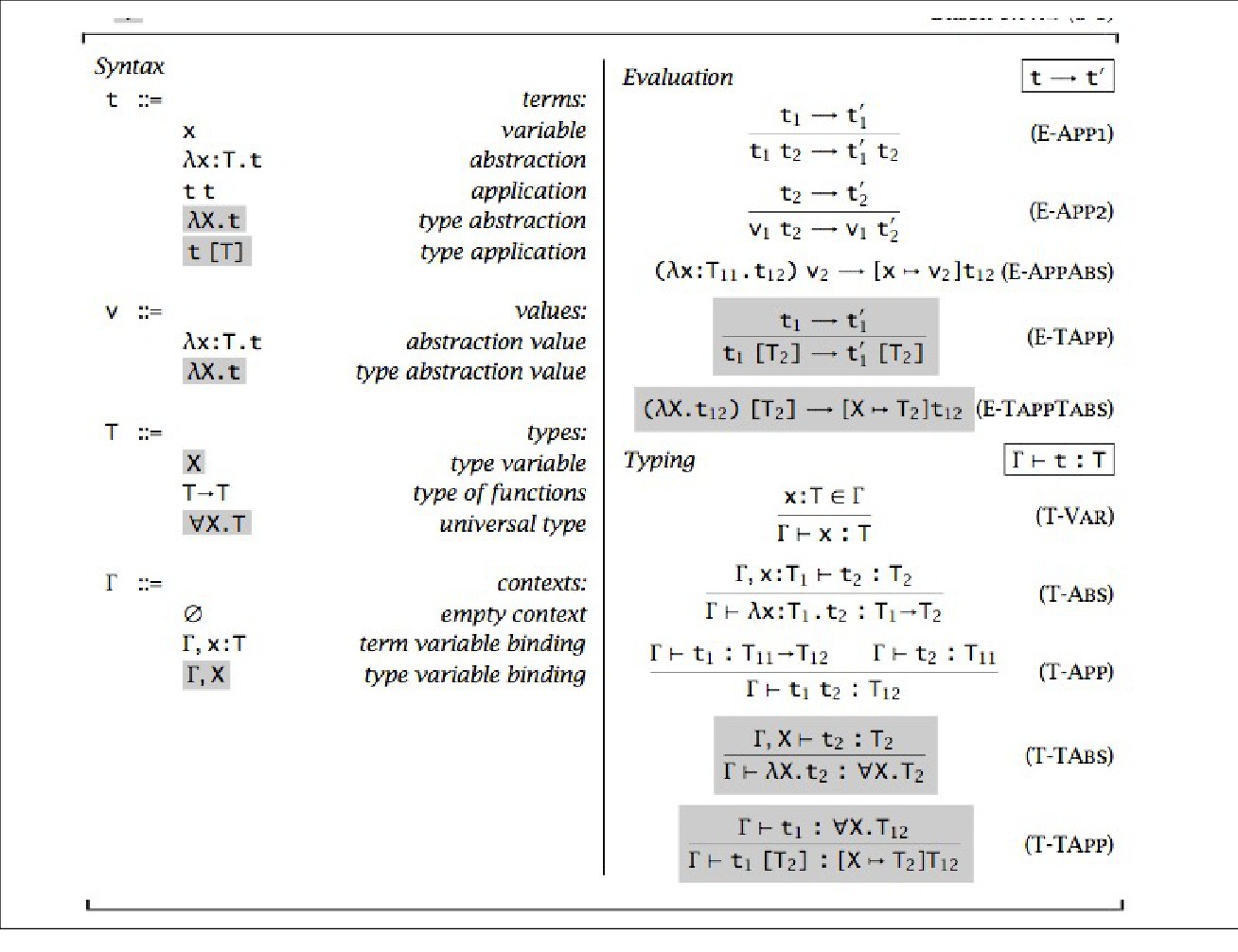

System F

• Girard-Reynold’s polymorphic lambda calculus (1972)

• Basis for foundational work on parametric

polymorphism.

• Incorporates higher-rank impredicative polymorphism.

• The calculus is a straightforward extension of STLC

with abstraction and application at the level of types.

• Enjoys usual properties:

• Type Safety

• Strong Normalization!

Monday, December 9, 13

System F

• Type Inference for System F is undecidable (Wells, ‘94)

• Various forms of partial type inference are also

undecidable.

• Importantly, it is impossible to infer instantiations for

type variables at type applications. (Boehm, ’85,’89)

• Types can only be checked.

• Therefore, it is inevitable that programs written in the

full System F be heavily annotated.

Monday, December 9, 13

Predicative System F

• Restrict System F such that type variables can only

instantiated with monotypes.

• Type inference remains undecidable (Pfenning, ‘92)

• Partial type inference where types can be erased from

functions is also undecidable (Pfenning, ‘92)

• However, as it turns out, (monotype) instantiations for

type variables can be inferred at type application sites

(the current paper).

Monday, December 9, 13

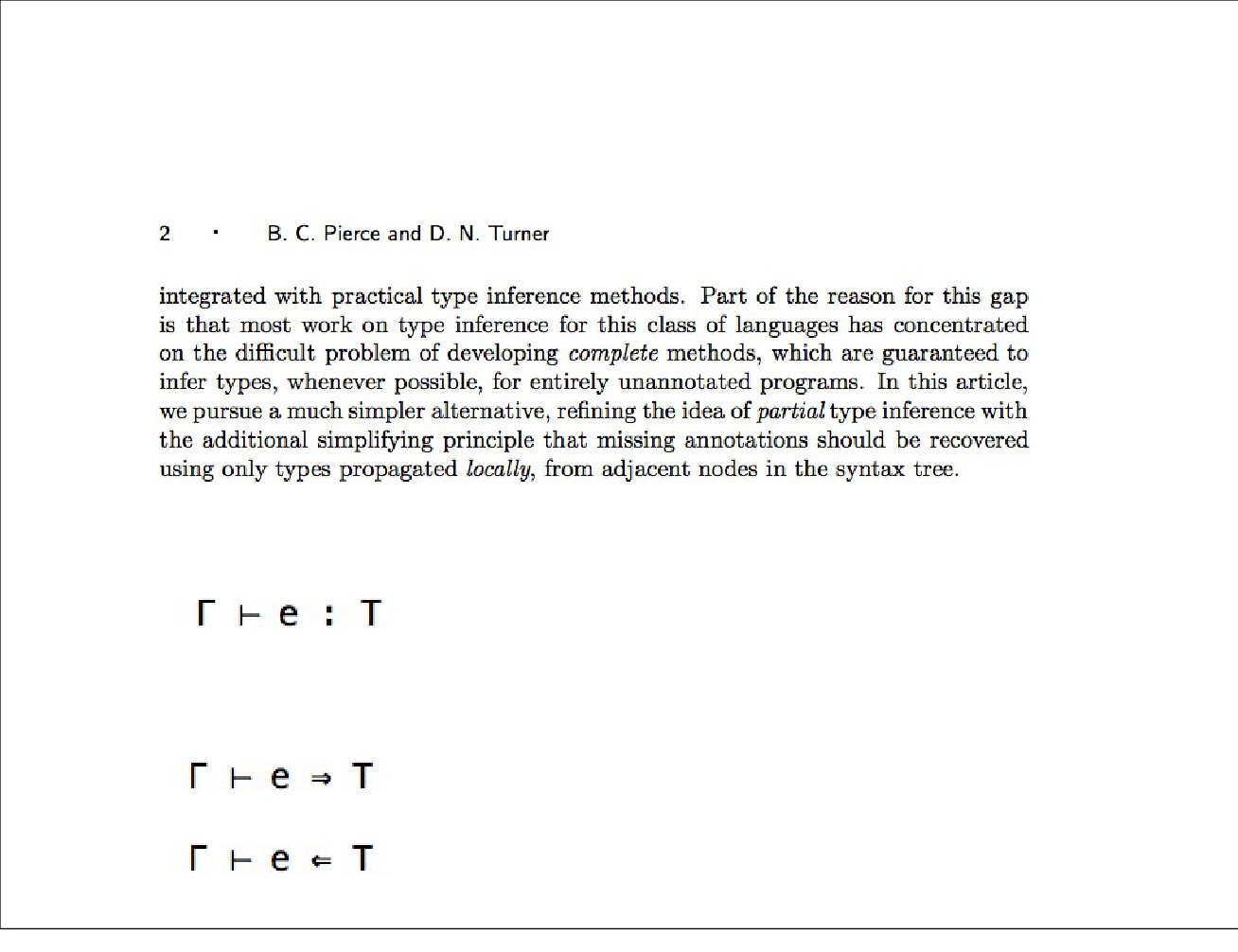

Bidirectional Type Checking

• First formalized by Pierce and Turner (2002)

• Split the judgement:

Under Gamma, exp e has type T

• Into two judgements:

Under Gamma, exp e synthesizes type T

Under Gamma, exp e is checked against type T

Monday, December 9, 13

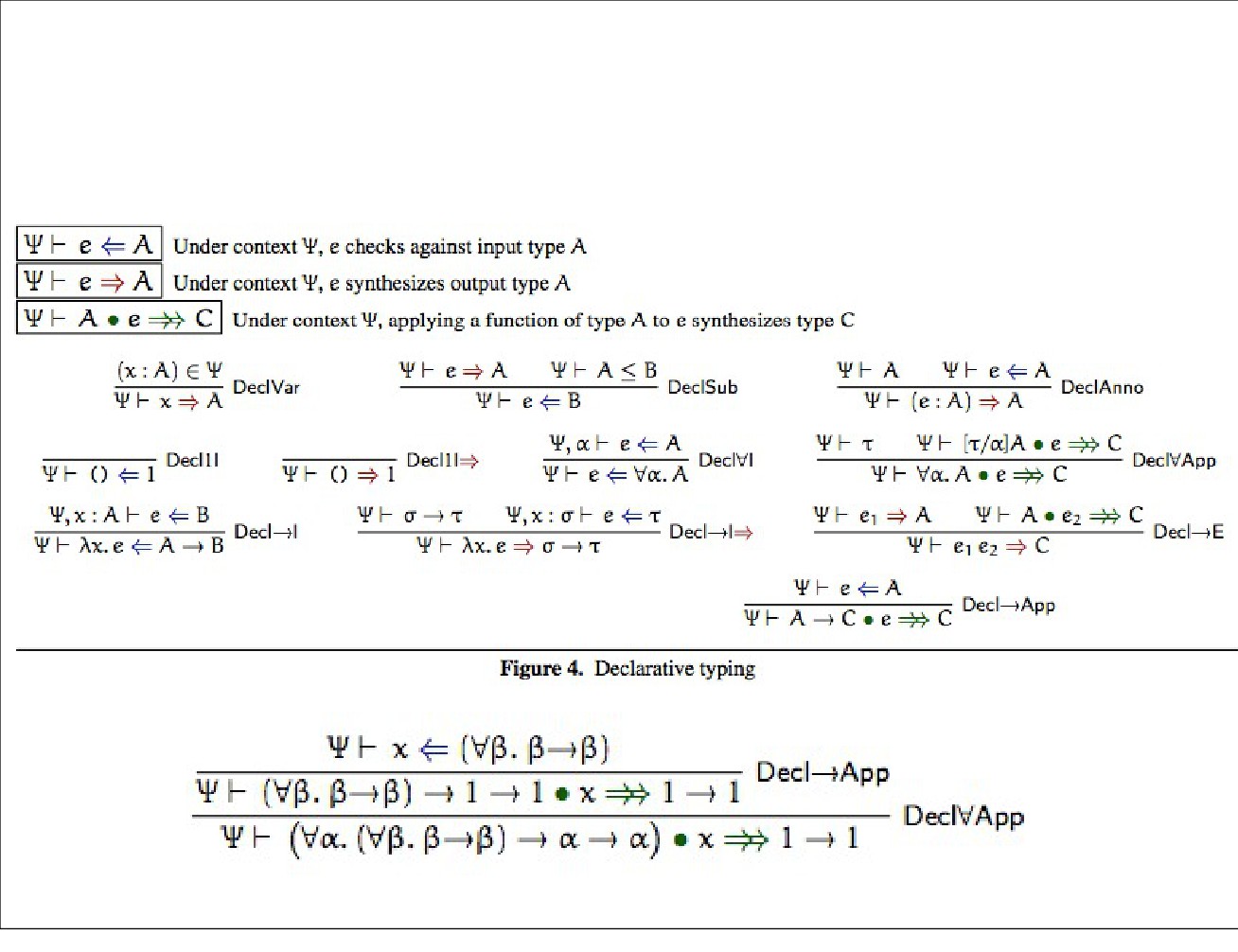

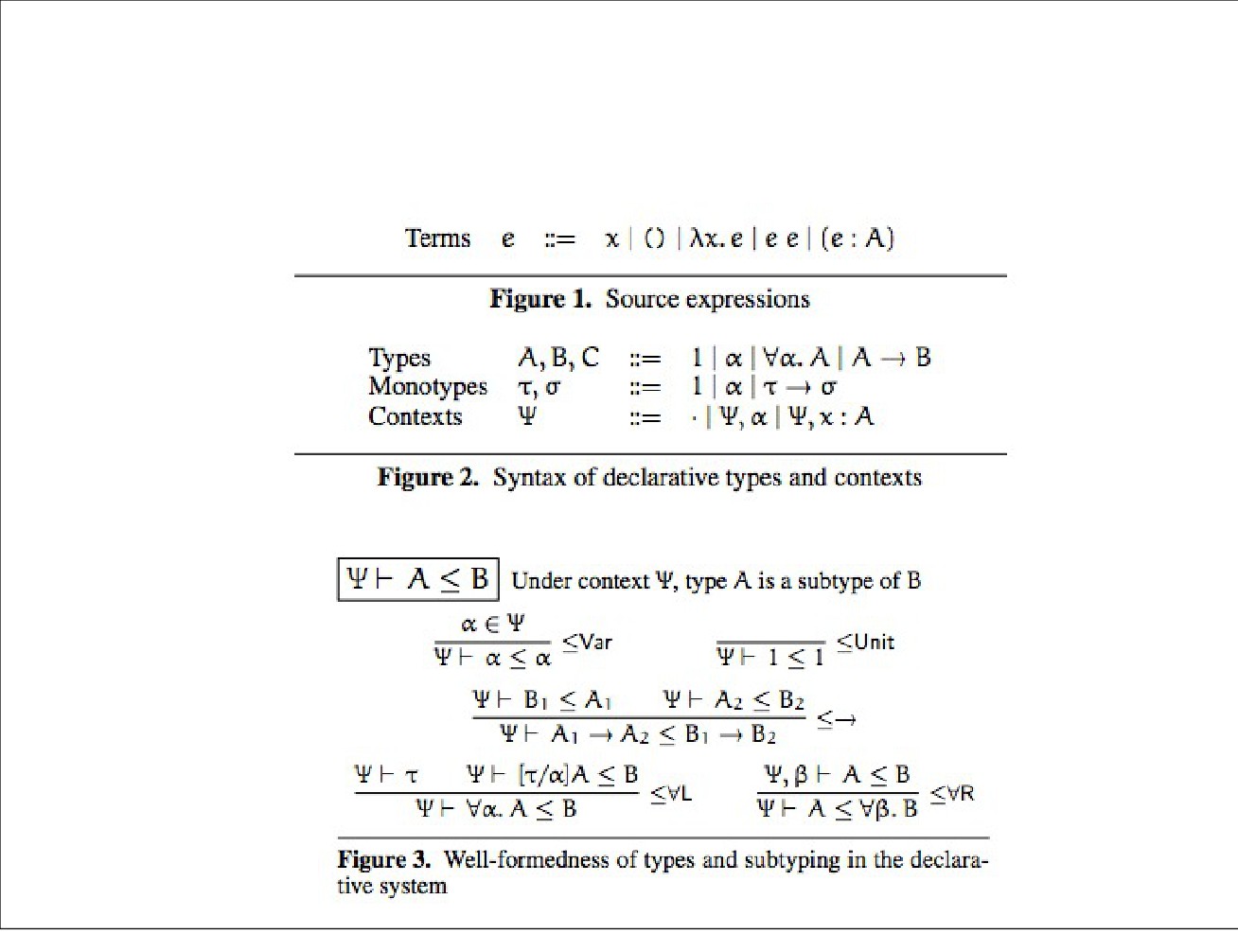

The Paper

• They give a axiomatic, bidirectional type rules grounded

in proof theory. Axiomatic because rules “guess” the

instantiations for type variables.

• Typing is stable under \eta reduction

• Sound and Complete w.r.t the usual type assignment

rules of System F

• They give algorithmic version to implement the

axiomatic system.

• Sound and Complete w.r.t axiomatic version.

• They prove decidability of their algorithm.

Monday, December 9, 13

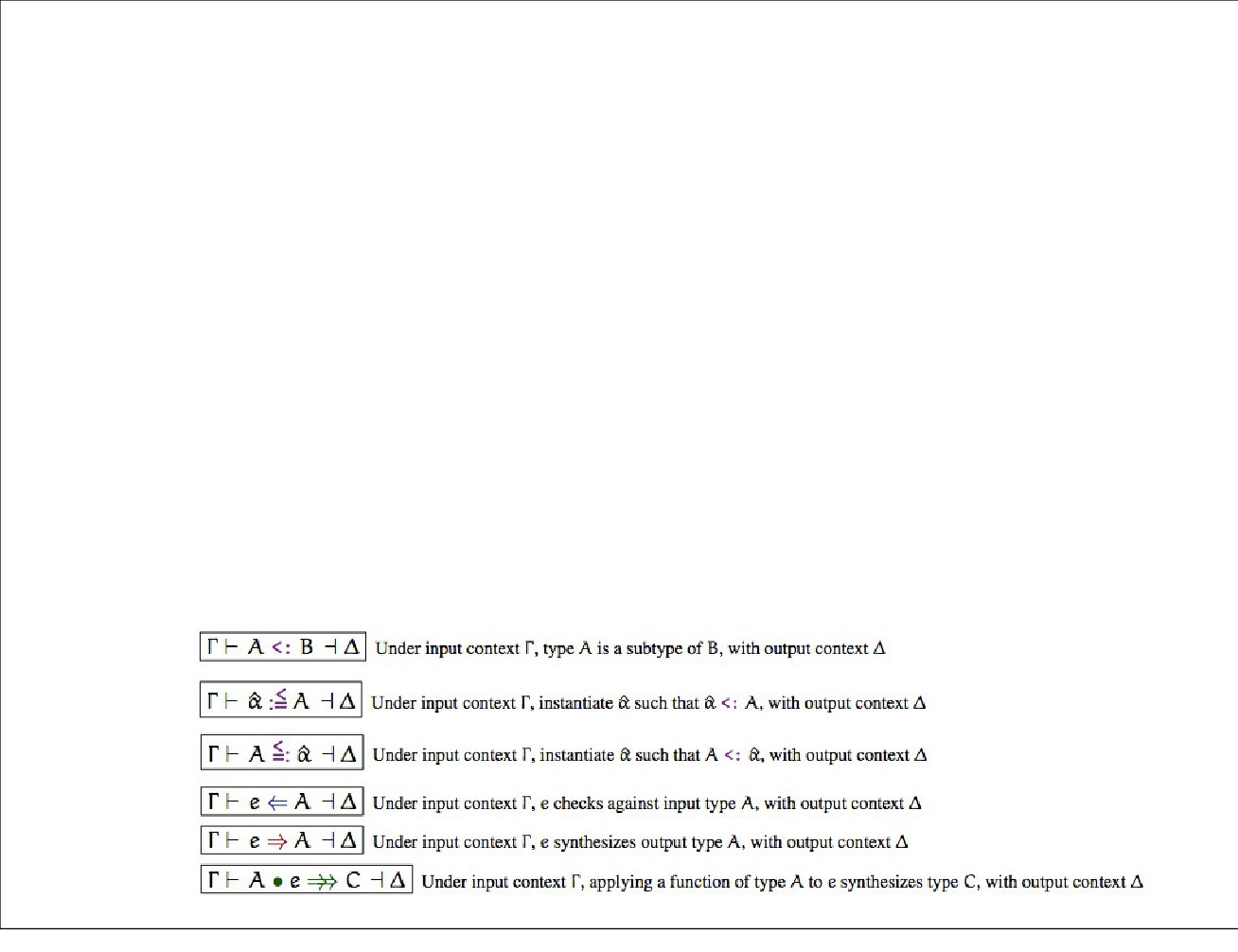

Algorithmic Typing

• Eliminates the need for guessing

• Introduces existential type variables (denoted â). Uses

them to instantiate regular type variables. Solves

existentials through usual method of unification.

• Typing judgements are extended with output context

(Δ) that is “more solved” than the input context (Γ).

Some of the existential variables in Γ are solved in Δ.
